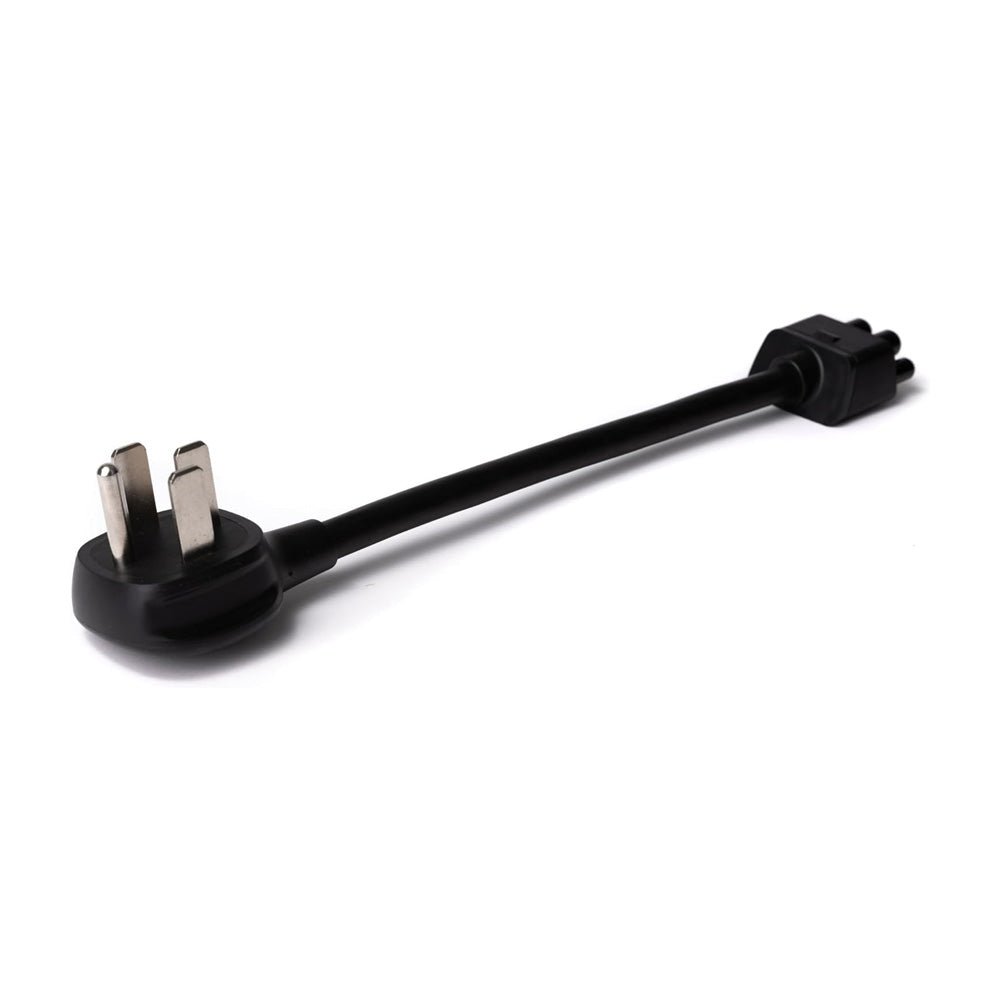

14-50 Adapter for Tesla Gen 2 Mobile Portable Charger

Applying the highest quality materials to practical designs, our products are engineered to meet the specific needs of EV vehicles and owners. Our EV charging products and accessories are backed by our industry-leading warranty with USA based support. Rated 240V at 32 Amps for faster and more efficient charging by connecting the 14-50 Adapter to the Tesla Gen 2 Mobile Connector Charger. If you have a 14-50 receptacle at home, work, or any destination, increase your miles of range per hour of charging by up to 10x (results may vary depending on your Tesla model). ETL Tested and Listed (Control No. 5026085) to conform to UL Standard 817, Certified to CSA Std. C22.2 No.21. SAFETY FEATURE: Integrated thermal sensor for auto-shutoff at max operating temperature of 122F.

Features:

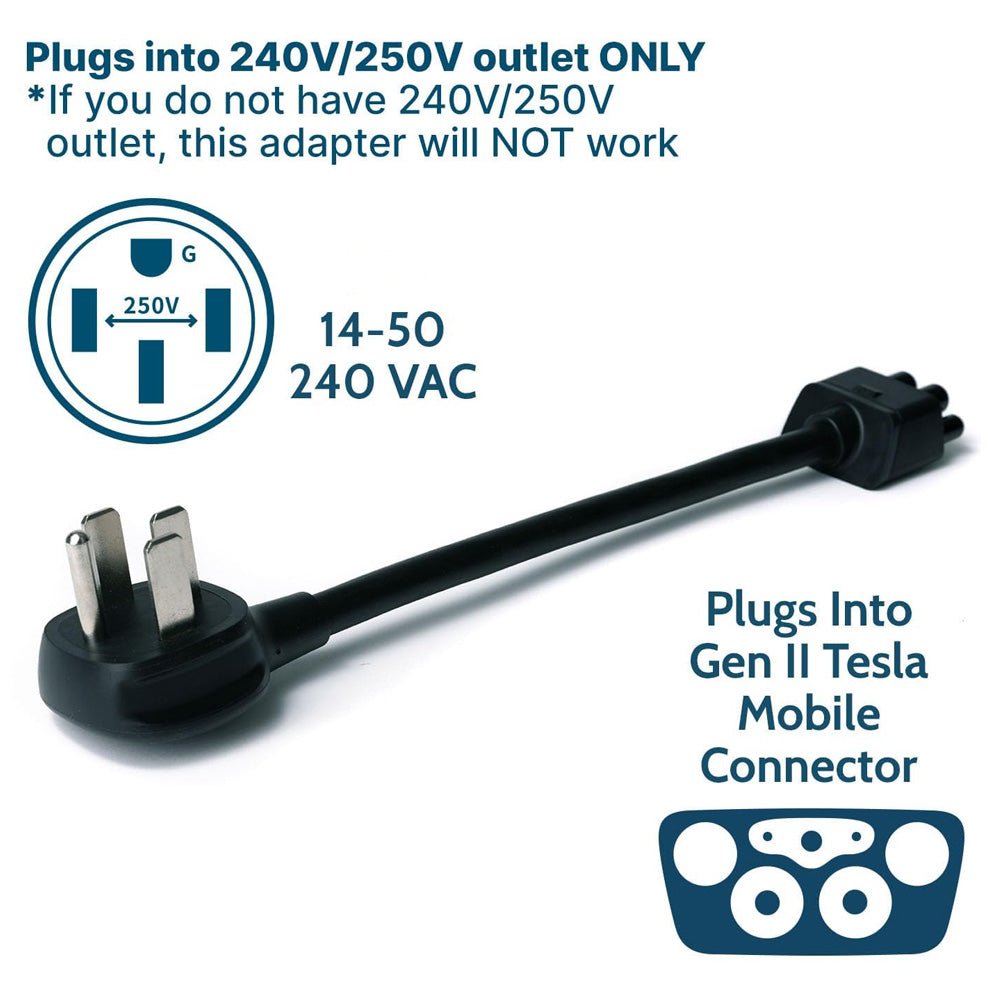

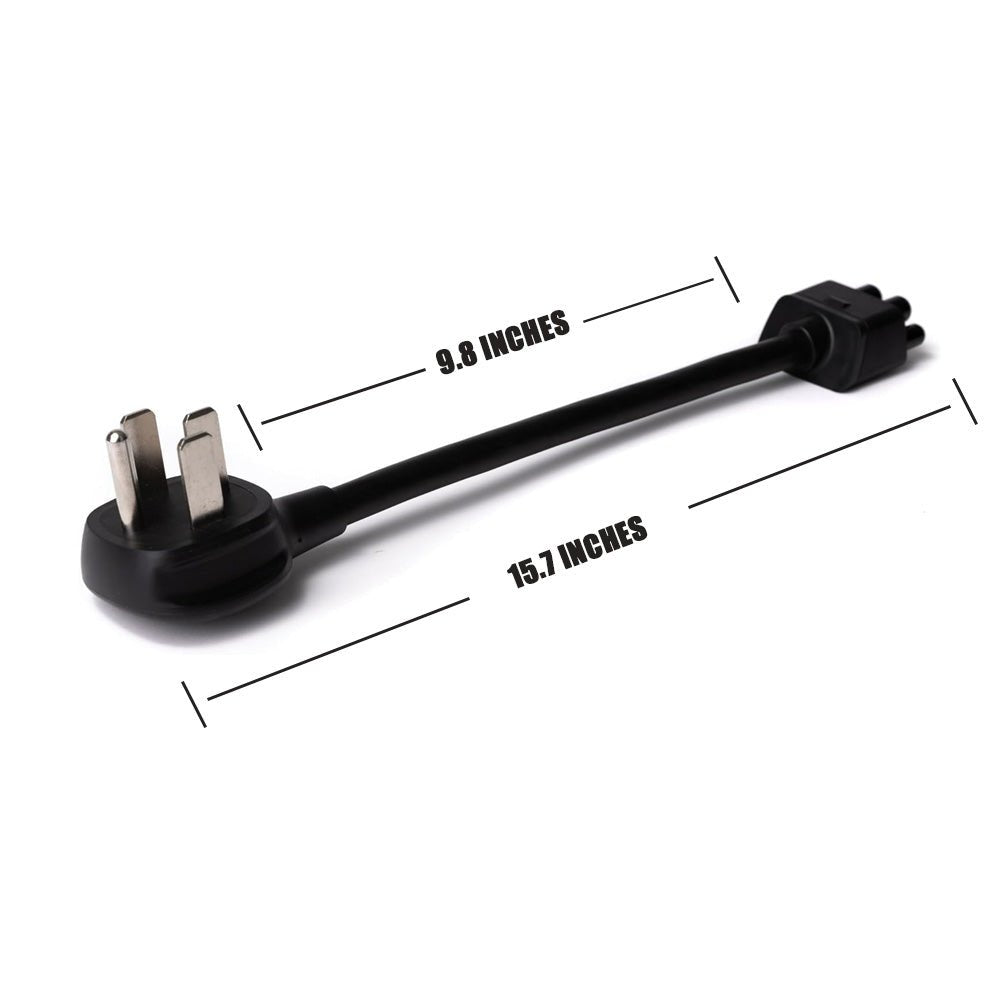

• THE IDEAL SOLUTION: Our EV adapters are specifically designed to fit Tesla Gen 2 Mobile Chargers allowing you to connect your Tesla charger to your 240 VAC 14-50 outlet at home or away (15.7" Length End-to-End)
• FIT & VERSATILITY: Swap standard 5-15 adapter on Gen 2 Tesla Mobile Charger with LENZ NEMA 14-50 Adapter to boost your charge to Level 2 charging at 32 Amp. NOT compatible with non-Tesla electric vehicles.
• SAFETY CERTIFIED: Built with premium material including nickel plating for corrosion resistance, integrated thermal sensor auto-shutoff, adapters are fully tested and conforms to UL STD. 817, Certified to CSA STD. C22.2#21. ETL listed (Control No. 5026085)
• SUPPORT UP TO 32A: Rated to support 32 Amps with Tesla Gen 2 Mobile Charger. NOTE: This product is NOT compatible with Gen 1 Mobile Connector (Tesla Mobile Chargers manufactured before 2018)

Safety Information

• Ensure that the adapter conforms to the household outlet(s) you intend to use for charging.
• Gen 2 Mobile Connector and are NOT compatible with Gen 1 Mobile
• Connectors. Attempting to use with Gen 1 Mobile Connectors can result in a fire, resulting in personal injury and/or property damage.
• Regularly inspect both the adapter and charging/connector ports to identify any accumulated dirt or debris. When dirt or debris enters the connection ports, there is a risk of overheating.
• DO NOT continue use if you observe any damage to connector ports or pins.
• DO NOT insert foreign objects into the port as this can cause damage and pose a safety hazard.
• ALWAYS utilize a connector that is UL / ETL / SGS certified. This certification guarantees that the connector conforms to rigorous safety and quality standards.

Warnings

• Avoid exposing the adapter to moisture or high temperatures.
• Subjecting the adapter to these conditions may lead toperformance degradation, physical damage, and additional safety concerns.
• BEFORE EACH USE, inspect both adapter and charging ports to identify any presence of dirt or debris. Adapter and charging port connectors must be clean for safe usage and charging. DO NOT use if either the adapter or the charging ports are damaged.

Compatibility
Gen 2 Mobile Connector by Tesla
(NOT compatible with Gen 1 Mobile Connector)

Specifications
Input Voltage : 120/240 VAC
Output: Varies by Model
Operating Temperature: -22°F to 122°F (-30°C to 50°C)
Compatibility: Gen 2 Mobile Connector for Tesla
Charging Port: Tesla
Weight: Varies by Model
Length: Varies by Model
IP/NEMA Rating: IP 54
Certification: UL 817 and CSA C22.2 No. 21 (Intertek Listed)

Usage Guide

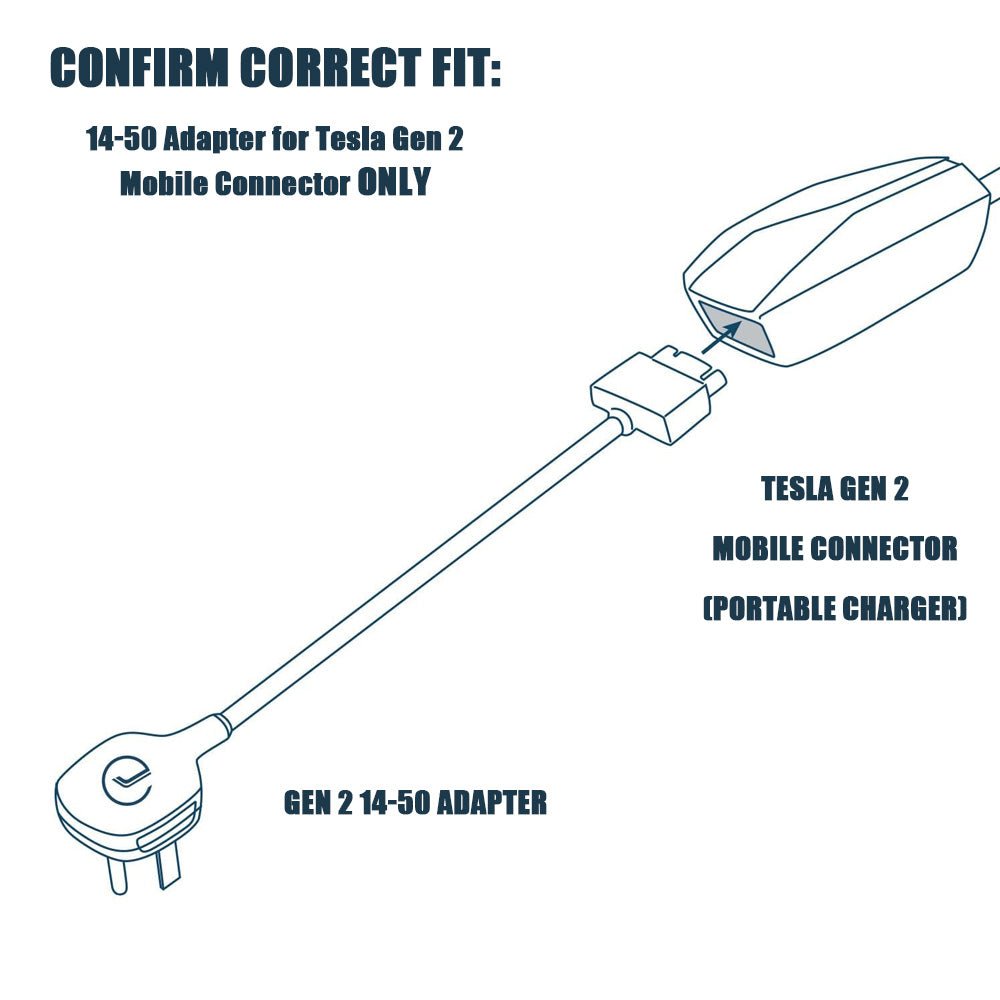

Step 1: Attach Adapter to Mobile Connector Controller
Push into Mobile Connector socket until adapter snaps into place

Step 2: Plug Adapter to matching wall receptacle
DO NOT use power outlet or receptacle that is broken, loose, unstable, and/or otherwise not firmly secured to the wall or power box.

The Adapter plug MUST be completely inserted into the power outlet. An incomplete connection can interfere with the performance of the adapter or mobile connector and may pose a safety hazard.

Step 3: Connect Mobile Connector handle to your Tesla’s charge port
Your vehicle must be unlocked for charge port door to open. Pressing button on top of Mobile Connector handle opens charge port door.

Step 4: Confirm Tesla vehicle’s indicator turns green

Step 5: To Unplug
Press the Mobile Connector handle button until charge port light turns white.
Unplug Mobile Connector handle from charge port.

Reference
Model : 14-50

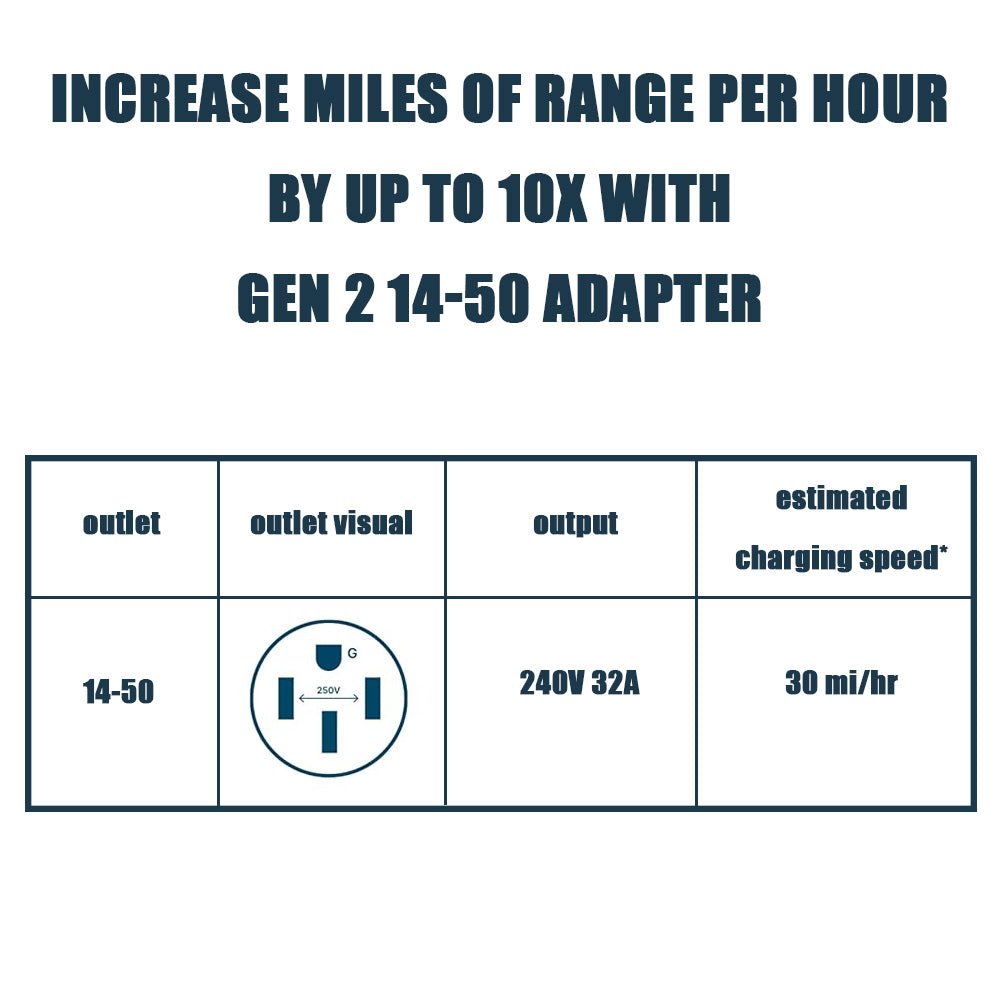

Charge Range Per Hour: 20 to 30 mi

IMPORANT INFORMATION
Temperature and Self-Adjusting Safety Feature

It is normal for the cable temperature to rise during charging, particularly during summer when the ambient temperature is high. This is true of all adapters (including OE adapters). Also, a reduction of charge strength to 16 Amp and/or charging deactivation is a safety feature built into Tesla’s onboard system. A built-in sensor in our adapter (and all OE adapters) communicates the operating temperature to your vehicle; and, in turn, your vehicle adjusts the charge strength and/or temporarily deactivates the charge when maximum operating temperature of 50 C (122 F) is reached.
