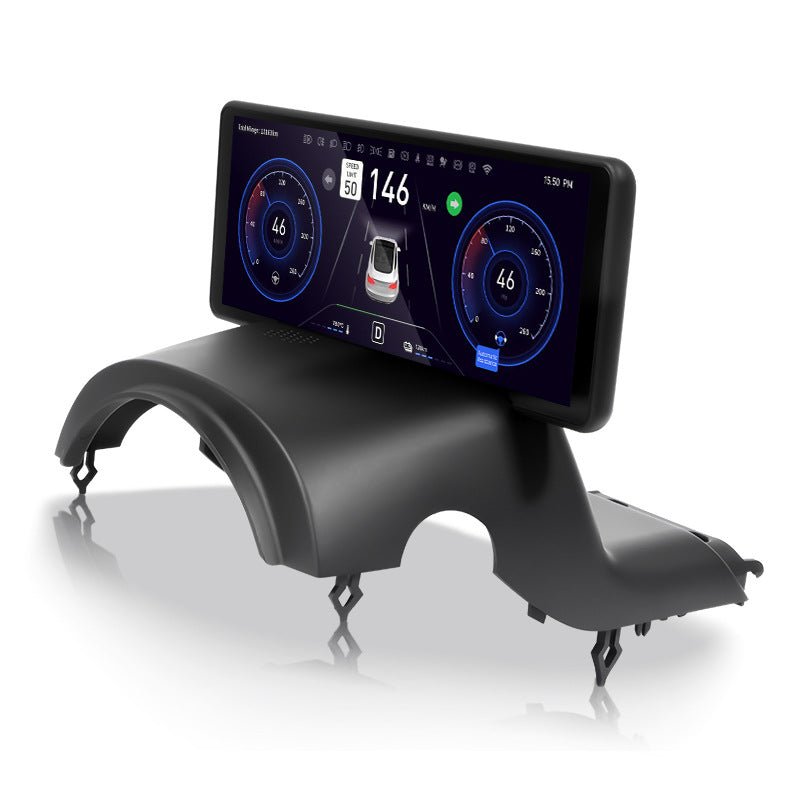

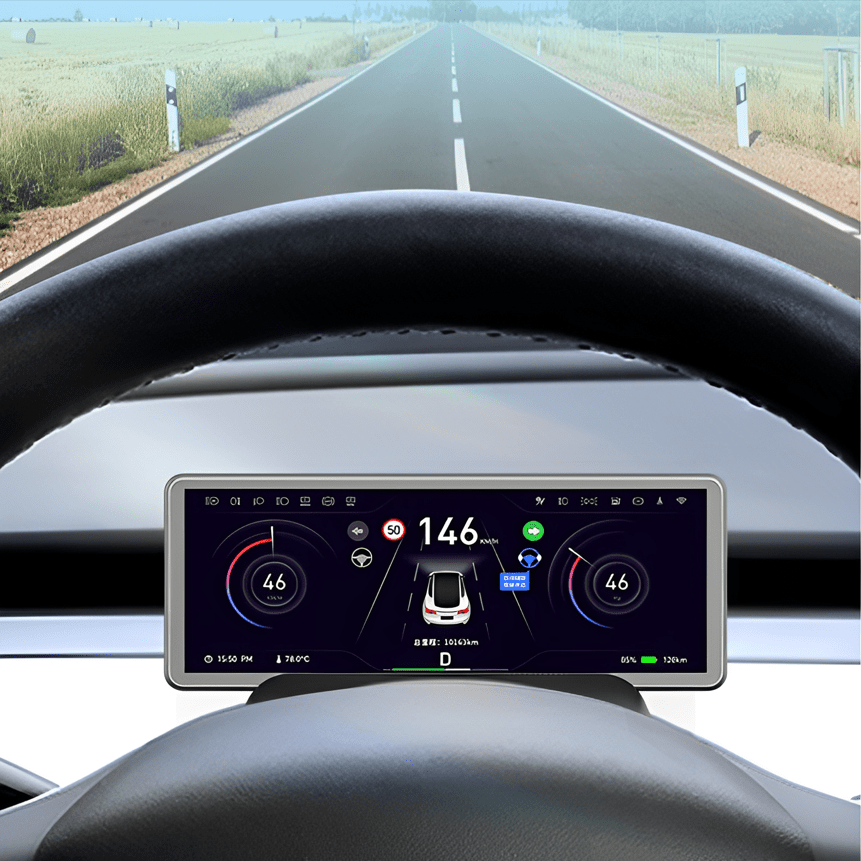

Model 3/Y H6 6.86'' Screen Instrument Cluster Mini Display for Tesla - Support OTA Upgrade
-
Estimated Delivery:May 05 - May 09
-
Free Shipping & Returns: On all orders over $75
Model 3/Y H6 6.86'' Screen Instrument Cluster Mini Display for Tesla - Support OTA Upgrade
Features
- Compatible Models: Teslaunch H6 screen instrument cluster dash display is compatible with all model years of Tesla Model Y and Model 3, compatible with both lntel and AMD processors.

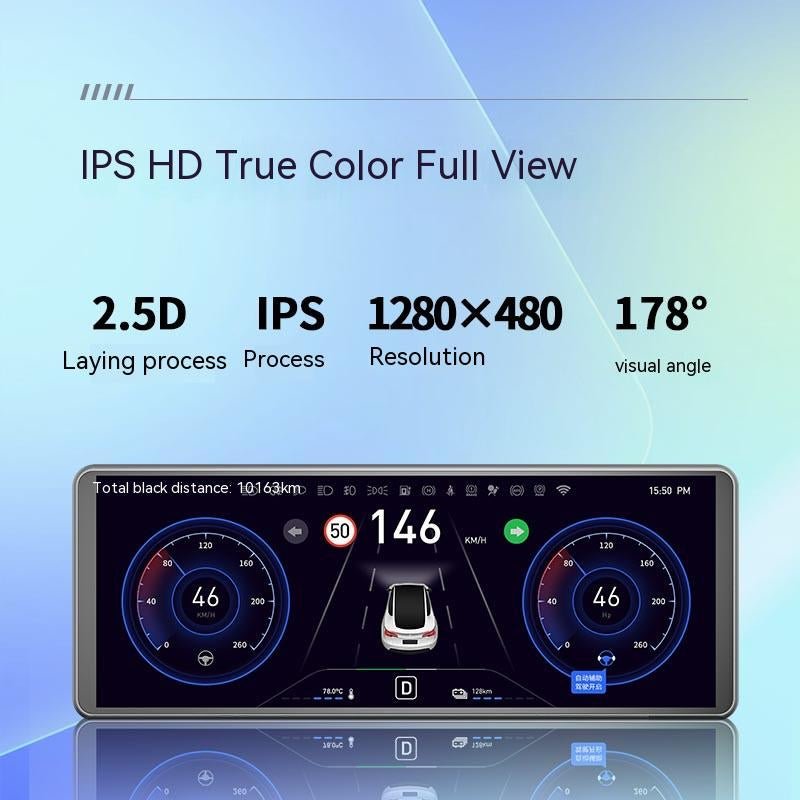

- Unique Design: Featuring a high-definition 2.5D IPS wide viewing angle with a resolution of 1240*480P, it delivers sharp and vibrant visuals. Design with three Ul themes to personalize your display interface. Additionally, it offers five car model colors to match your preferences and vehicle style
- Advanced Linux System: Powered by a high-performance Linux operating system, it ensures outstanding system performance and stability. Seamlessly integrated with the original steering wheel controls, Easily operate and control the H6 screen. lt also supports OTA upgrades, keeping your system up to date.
- Information Sync: Syncs seamlessly with the vehicle's driving information display, allowing you to stay updated with key driving data. lt also syncs partial data from the original car screen, such as automatic assisted driving icons, providing comprehensive information at a glance.

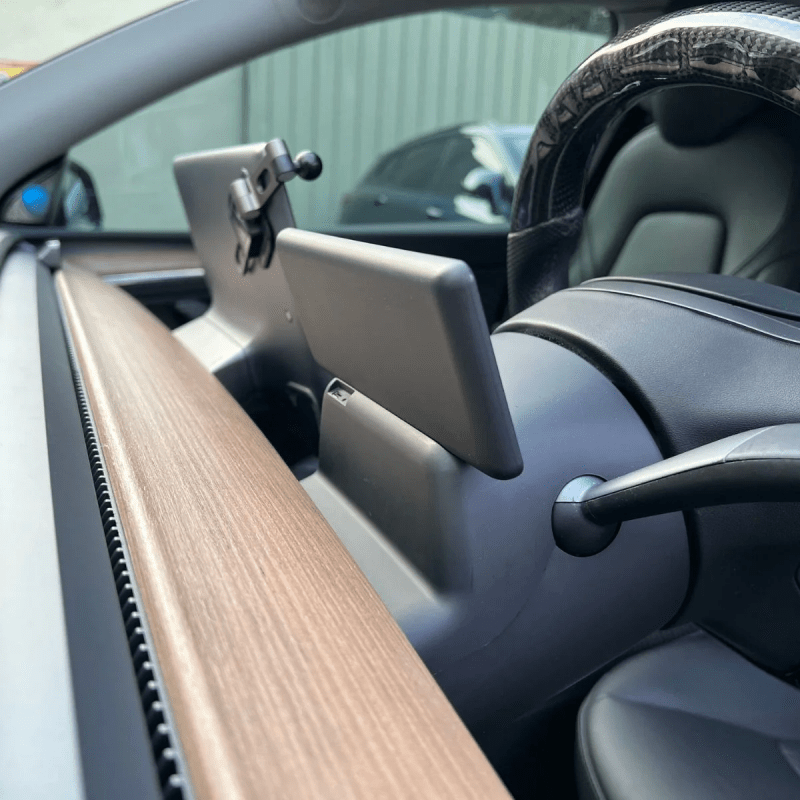

- Easy lnstallation: Plug & Play, installation time within 20 min, No drilling required, Does not damage the original vehicle harness and function.
Functions
- Information Sync: Time display, Turn signal lights (left/right), Rear fog light, Position lights, Low beam headlights, High beam headlights, Automatic braking, Seat belts, Outside temperature, Speed limit reminder, Battery usage. Distance display, Speed/Door open information, Gear position information, Range, Total mileage, Tire pressure display, Sport mode, Automatic switching between KM/MPH

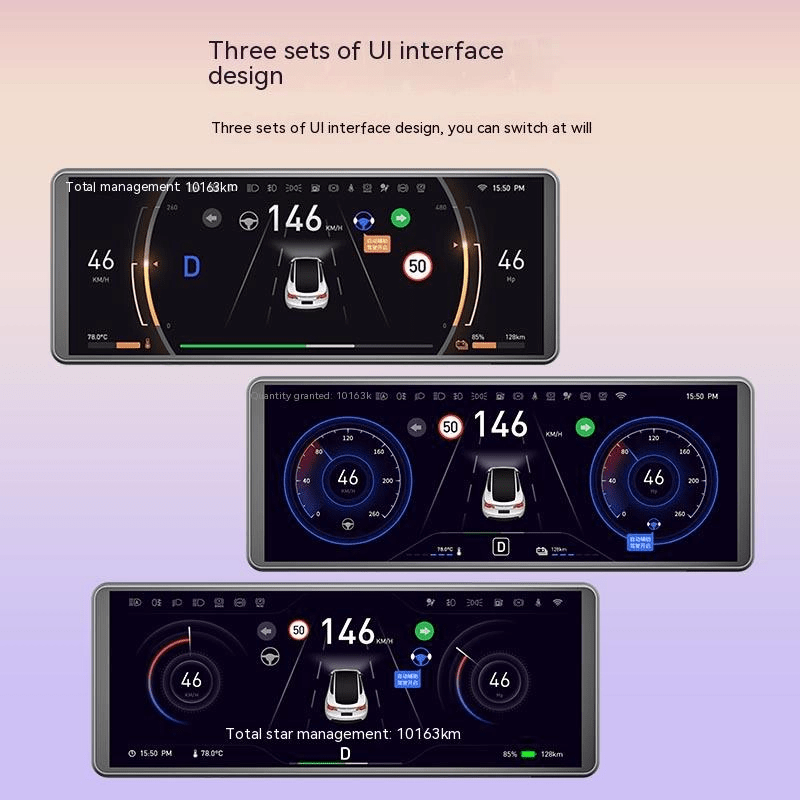

- Creative Ul themes: Minimalist/Classic /Sporty
- Brightness adjustment: Adaptive day and night mode
- Compatible with original vehicle button controls

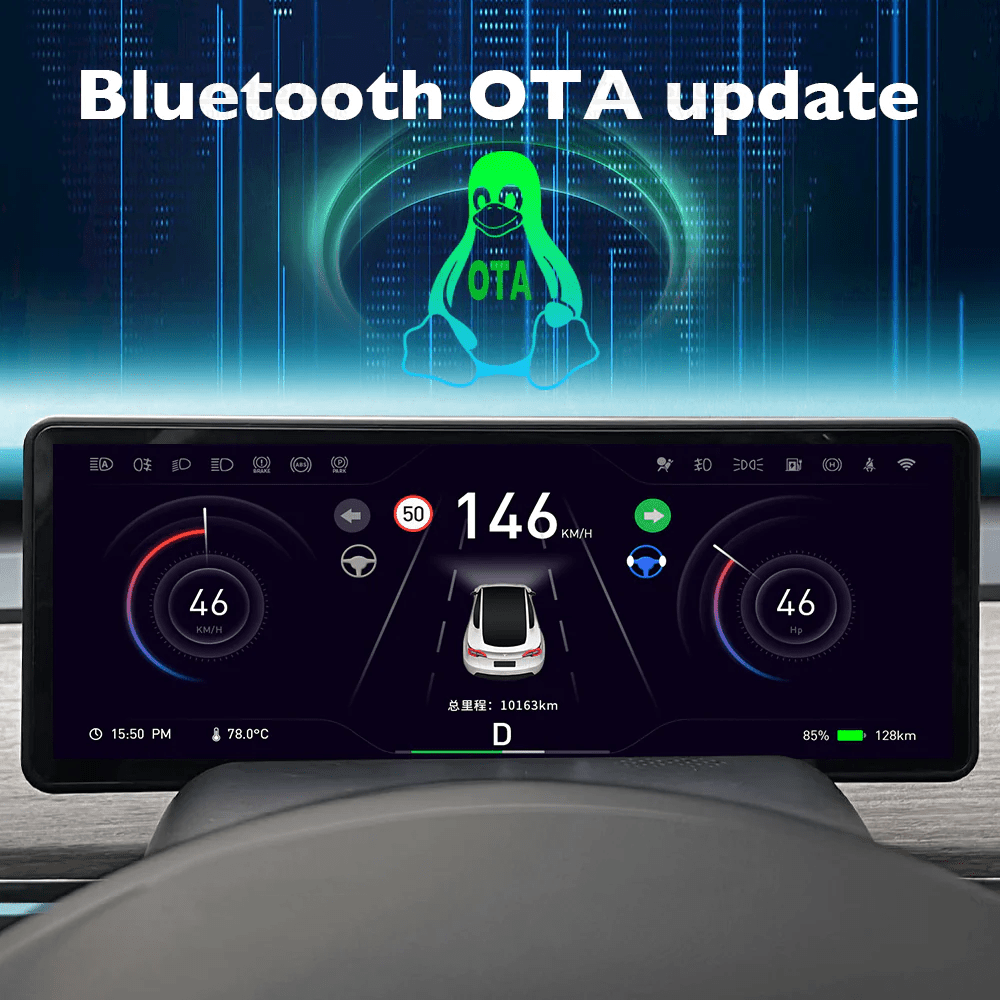

- Support Bluetooth OTA upgrade
- Sync automatic pilot driving assistance icons and Plaid mode
- 2 optional car models and 5 optional car model colors: white, red, black, blue, gray
- Exclusive front forward spot camera (optional)
Installation Manual: Click Here
FAQ
Q1: How to switch between day and night mode?
A1: Push and hold the right scroll wheel to the right for 3 seconds to access the settings menu > Set to the desired brightness
Q2: How to adjust the brightness?
A2: Push and hold the right scroll wheel to the right for 3 seconds to access the settings menu > Set to the desired brightness
Q3: How to switch the car model color?
A3: Push and hold the right scroll wheel to the right for 3 seconds to access the settings menu > Set to the desired color
Q4: How to solve the Black screen? (screen not turning on after installation)
A4: Reason- The adapter harness is not properly connected
The main unit plug is not reconnected within 5 minutes after unplugging
Solution- First re-plug the connector. Then connect the wiring harness, lock the car for 2 hours, keep your phone and remote key within a distance of more than 20 meters from the car, and check if the screen can be turned on after 2 hours
Q5: How to solve no display after screen startup?
A5: Reason- Backend data error
Solution- Reconnect the main host plug
Q6: Original vehicle information not synced or displayed
A6: Reason- Power cable or protocol cable not connected
Solution- Replug the wires and check the cable connections
